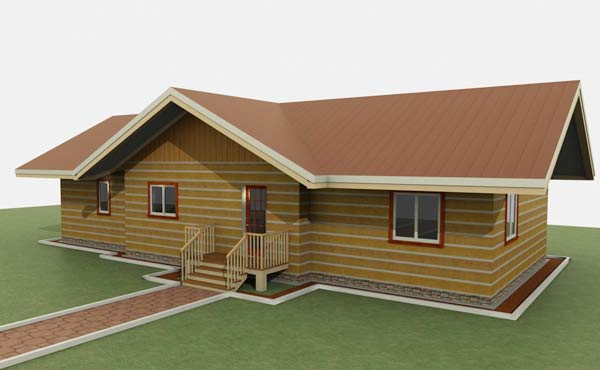

Single Level (Ranch or Bungalow Style) Ecolog HomesSingle Level / Bungalow Style Ecolog Log Home

Most Ecolog Homes are based on the following principles: Square timber log walls, a steep 45 degree roof built with solid 4"x10" timber trusses. The insulation is applied on the outside of the roof sheathing, leaving lots of space for high vaulted ceilings and for additional living space in the loft.

Recently many customers have asked us if we can build single level (ranch or bungalow style) log homes. For most people the reason is that they don't want to climb stairs as they get older.

We discussed these requirements with our engineers and designers and are pleased that we can offer single level Ecolog homes now. The possible floor plan designs are endless, and really only your imagination is the limit.

We can offer two basic designs, which differ in the roof structure:

  • Solid truss roof single level Ecologs: The roof for these homes has a 12:6 pitch instead of the 12:12 pitch of the standard Ecolog home. The trusses are the same 4"x10" timbers, just at a reduced angle.
  • Engineered truss roofs: In partnership with roof truss manufacturers we can offer a variety of roof designs. The most common roof suitable for Ecolog homes has a 12:6 pitch.

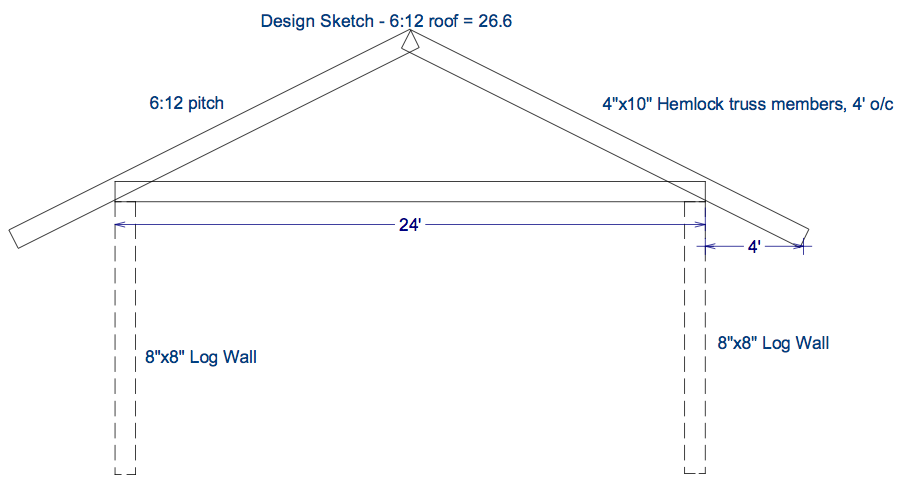

Timber roof truss for Ecolog Home
The solid truss roof offers the same charming look as standard Ecolog homes. The trusses are exposed on the outside under the 4' overhang as well as on the inside, forming a nice ceiling. To reduce heating costs and construction costs these roofs can have a vented attic with insulation directly above the ceiling. The Ecolog kit cost for homes with solid trusses is the same as for any other standard Ecolog kit. Single level Ecolog homes with solid trusses are normally 24' wide, can vary in length, and can be combined into T, L or wing shaped structures like other Ecolog homes.
Engineered roof truss for Ecolog Home
Roofs with engineered trusses offer a lot of flexibility. They can span bigger areas then our solid trusses, and therefore we can offer 30' wide Ecolog homes in any desired length. Wing or L shaped homes are also no problem to build with these trusses. The living room can have a vaulted ceiling, and the trusses can be extended to offer covered decks. And these roofs also have a 4' overhand all around the home to protect the log walls.

The cost for ranch style Ecolog home kits depend on size and shape of home as well as requirements like vaulted ceilings, covered decks, extended gables or extreme snow loads.

1344 sqft EcoLog home

The Manakin - 1344 sqft Footprint, 2000 sqft Living Space

This plan has a footprint of 1344 sqft, offering about 2000 sqft total living space on main and loft floor.

This home shows nicely how we combine multiple "24' building blocks" to construct bigger homes. In this case, the T shaped building consists of a 24'x32' area (living room/kitchen), connected to a 24'x24' area, used for bedrooms and corridor in the main floor.

Key features of the plans below are:

  • appr. 2000 sqft of living space
  • large open living room and kitchen area
  • living room partly open to ceiling
  • 2 bedrooms on main floor
  • big master bedroom with ensuite and walk-in closet
  • huge open area above kitchen (family room, office, etc.)

This plan can easily be modified to offer more bedrooms for bigger families.

Please contact us for a higher resultion version of the plans, or for free consultation on how to modify this plan to best suit your needs !

Floor plan main floor of 1344 sqft EcoLog home





Main Floor



Floor plan loft floor of 1344 sqft EcoLog home

Loft Floor


Floor Plan, 1152 sqft Footprint, 2000 sqft Living Space

This plan has a footprint of 1152 sqft (24' x 48'), offering about 2000 sqft total living space on main and loft floor.

Key features of the plans below are:

  • lage open living room and kitchen area
  • living room partly open to ceiling
  • 1 big den or bedroom on main floor
  • Big open loft area with bathroom, 2 balconies and lots of closet space, ideal as huge master bedroom

Please contact us for a higher resultion version of the plans, or for free consultation on how to modify this plan to best suit your needs !



Floor plan main floor of 1152 sqft EcoLog home





Floor plan loft floor of 1152 sqft EcoLog home

Picture of 1632 sqft EcoLog home

Floor Plan, 1632 sqft Footprint, 2700 sqft Living Space

This plan has a footprint of 1632 sqft, offering about 2700 sqft total living space on main and loft floor.

This building footprint consists of a 24'x32' area (living room/kitchen), connected to two 24'x20' and 24'x16' wings.

Key features of the plans below are:

  • appr. 2700 sqft of living space
  • large open living room and kitchen area
  • living room partly open to ceiling
  • 2 bedrooms on main floor
  • Den / office on main floor
  • 2 spacious bedrooms each with ensuite and lots of closet space in loft
  • huge open area above kitchen (family/rec room)

This plan can easily be modified to offer more bedrooms for bigger families.

Please contact us for a higher resultion version of the plans, or for free consultation on how to modify this plan to best suit your needs !

Floor plan main floor of 1632 sqft EcoLog home





Floor plan loft floor of 1632 sqft EcoLog home

Floor Plan 1152 sqft Footprint, 1700 sqft Living Space, T Shaped

This plan has a footprint of 1152 sqft using a T shaped footprint, offering about 1700 sqft total living space on main and loft floor.

Key features of the plans below are:

  • Large open living room and very spacious kitchen
  • Gret room partly open to ceiling
  • 2 bedrooms on main floor
  • Big master bedroom with ensuite in loft
  • Big open loft area for use as library, media room or office



Floor plan main floor of 1152 sqft EcoLog home





Floor plan loft floor of 1152 sqft EcoLog home
