Floor Plan, 1728 sqft Footprint, 2800 sqft Living Space

This plan has a T shaped footprint of 1728 sqft, offering about 2800 sqft total living space on main and loft floor.

This building footprint consists of a 24'x40' area (living room/kitchen), connected to another area of 24'x32'.

Key features of the plans below are:

  • large open living room and kitchen area
  • living room partly open to ceiling
  • 2 bedrooms on main floor, one with ensuite
  • 3 bedrooms and additional bathroom in loft
  • huge open area above kitchen (family/rec room)

This plan can easily be modified to offer more bedrooms for bigger families.

Please contact us for a higher resultion version of the plans, or for free consultation on how to modify this plan to best suit your needs !

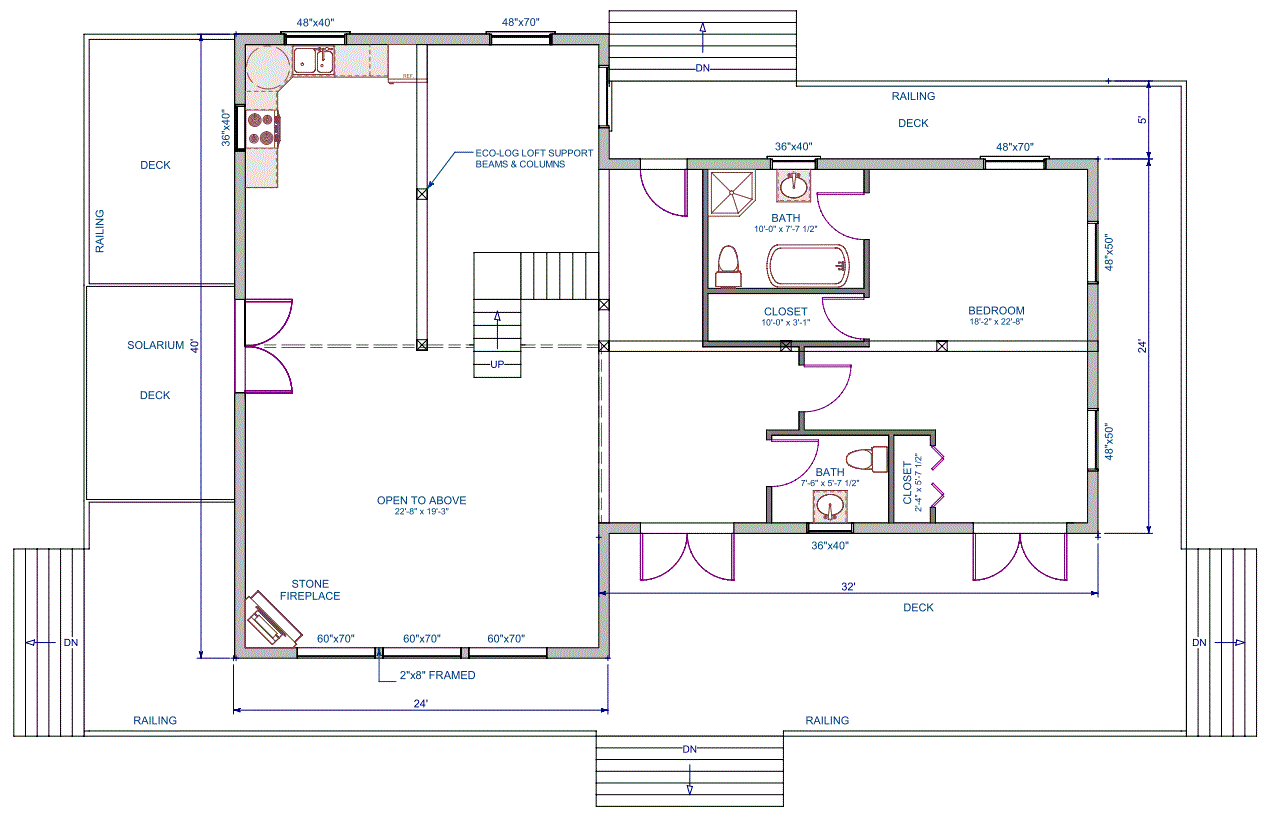

Floor plan main floor





Floor plan loft floor
